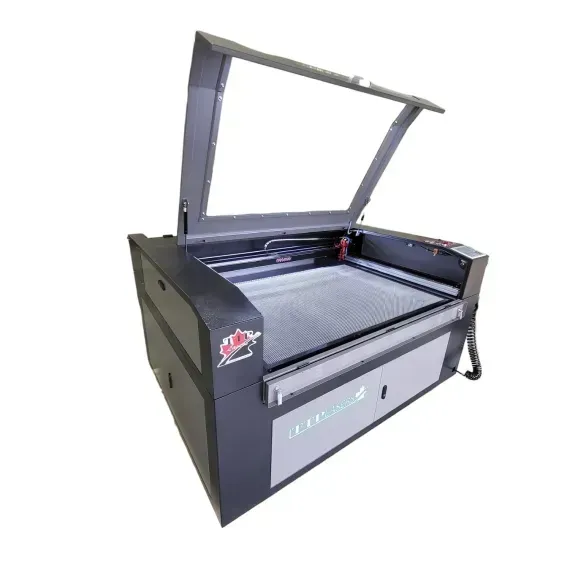

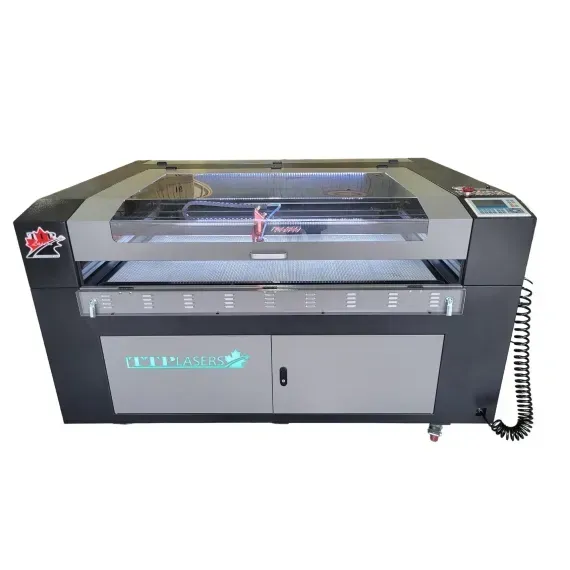

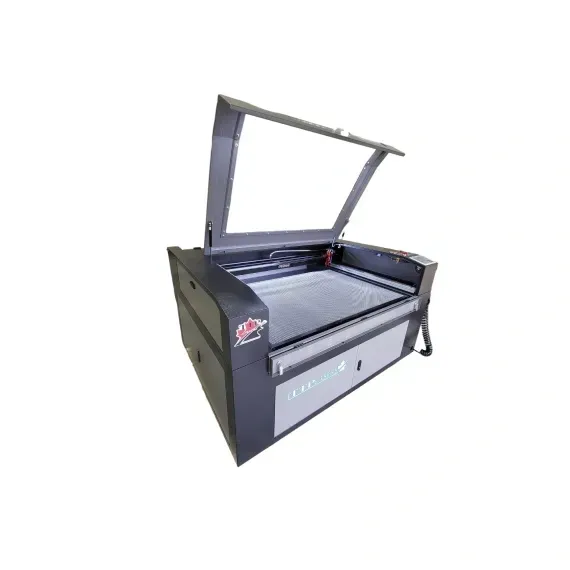

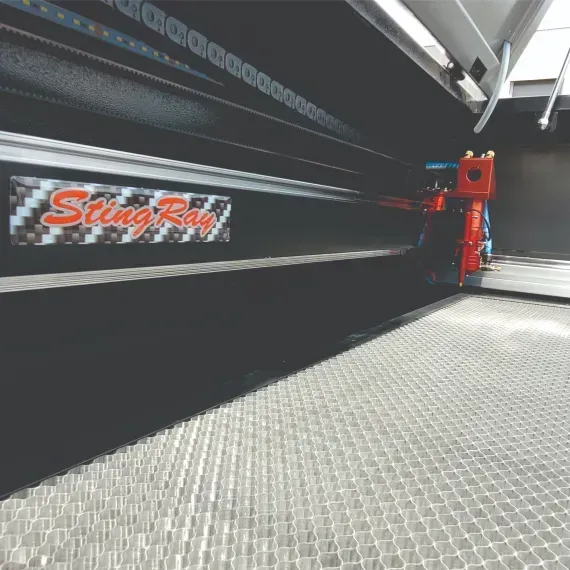

StingRay 51
Built for North America. Built for you.
$15,550.00
Plus Applicable Taxes
Sold as a complete package to get you going immediately, you will only require a computer!
Features
- 51W x 36D x 11H (“) Worktable PLUS Infinite Front/Rear Pass-Thru
- 130W Glass Sealed – RECI – TTP’s Laser Tube
- Latest Ruida Controller – Accepts Windows XP < Windows 10
- Leadshine Hybrid Servo Motors Provide Increased Speed And Productivity
- Front And Rear Pass Thru Accepts Infinite Length Materials

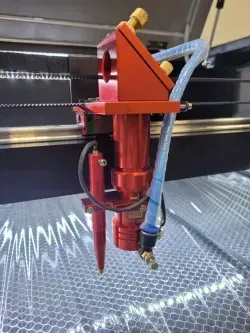

- Auto Focus Automatically Positions Start Up Distance Between Laser Head And Material
- Inline Red Dot Beam Combination Accurately Illuminates Over Your Material For Improved Accuracy And Material Alignment
- Wi-Fi, Ethernet, USB or External Memory Stick Connectivity

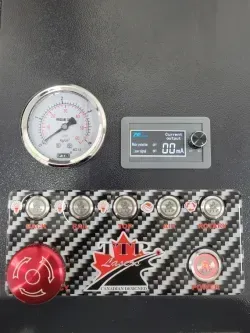

- Illuminated LCD Panel For Automated Laser Head Control
- Motorized Z-Table Lowers To Accommodate Up To 11″ Materials Smoothly on Hiwin Ball Bearings (or 4.5” on passthru)
- Both Honey Comb and Knife Blade Work Platforms Included
- Multiple Internal LED Strip lighting Illuminates Workspace And Machine Components

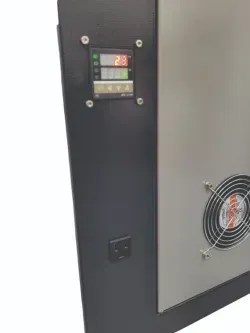

- Numerous Safety Features Like A Large External LED “Working Light” Shows When Projects Are Running Or Complete, Heat Sensor Alarm, Water Flow Sensor And More
- Quality CNC Machined Parts For Long Term Service And Reliability
- Precise Hiwin Guide Rails Promote Quiet, Smooth & Precise Laser Movement
- A Dedicated Driver Controls The Rotary Plug With The Simple Push Of A Button. No Messing Around Swapping Wires
- Optional Rotary, Wheel or Chuck, For Cylindrical Objects – Sold Separately
- Best In Class Technical Support and Setup Guidance
- 2 Year Warranty on Parts
- “Our Door To Yours” Shipping included to all Urban Areas.
Canadian customers add GST or HST according to your provincial regulations.
Manitoba customers add GST and PST
All other countries are duty free and tax exempt.
The listed price is the final price you will pay.
Shipping is free to urban areas world wide.
Rural areas may incur additional shipping cost.
| Specifications | Sting Ray 51 |
|---|---|
| Laser Tube | Reci W4, Reci rated 130watt, wattage will vary slightly |
| Work Table Size | 51"W x 36"D x 11"H, D can be infinity with pass through |
| Z Axis Height | 11" |
| Machine Stand Alone Size | 72"W x 53"D x 42"H with wheels |
| Weight | 486lbs |
| Crate Size | 58"L x 75"W x 49"H May vary |
| Crate Weight | 970Ibs May vary |
| Exhaust | AC Infinity S8 with speed control |
| Air Assist | 105W Air Pump |
| Rail System | High Precision Hiwin Guide Rails |
| Work Table | Honeycomb and Blades |
| Lens | High Quality USA CVD 63.5mm |
| Display And Control Panel | Latest Ruida 6445G |
| Rotary | Rotary Driver Installed (Rotary Optional) |
| Lighting | 3 24v led work area light, 1 in compartment |
| Computer Interface | USB, Wifi, Ethernet, USB Stick |
| Motion Control Motors | High Speed Hybrid Servo X and Y |
| Resolution | 2000DPI Capable, will depend on lens size |
| Compatible Operating Systems | Windows XP/2000/Vista/7/8/10/11. Mac compatible with Lightburn |
| Supported Graphic | Al, PDF, SVG, DXF, PLT, PNG, JPG, GIF, and BMP) |
| Laser Tube | Glass CO2 Reci W4 |
| Supported Software | Lightburn, RDWorks |
| Controller Buffer Memory | 128 MB |
| Operating Modes | Cutting, Scrolling, Engraving, Combined |
| Cooling | S&A CW 5200 Water Chiller |
| Electrical Requirements | 110v,60 Hz, single phase |
| Ventilation Requirements | 8" Duct and Vent |
TTP Lasers Canada is a laser machine manufacturer and a TTP’s laser engraver that serves clients across Canada, the USA, and all over the world.
