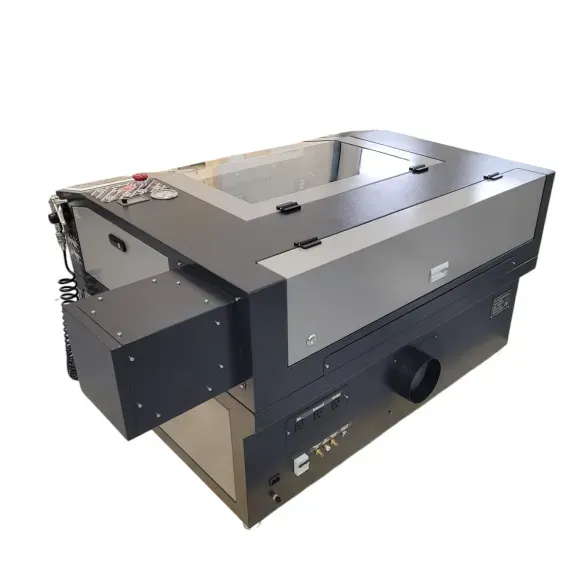

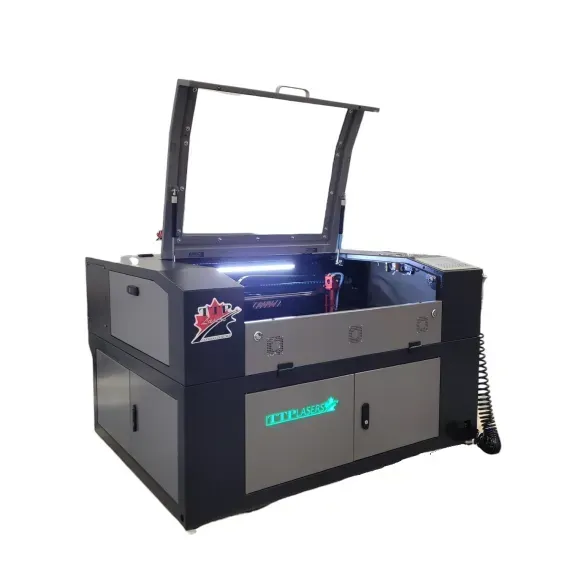

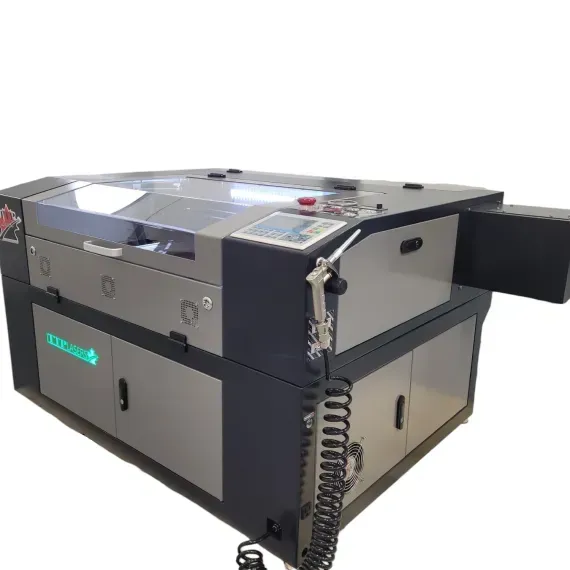

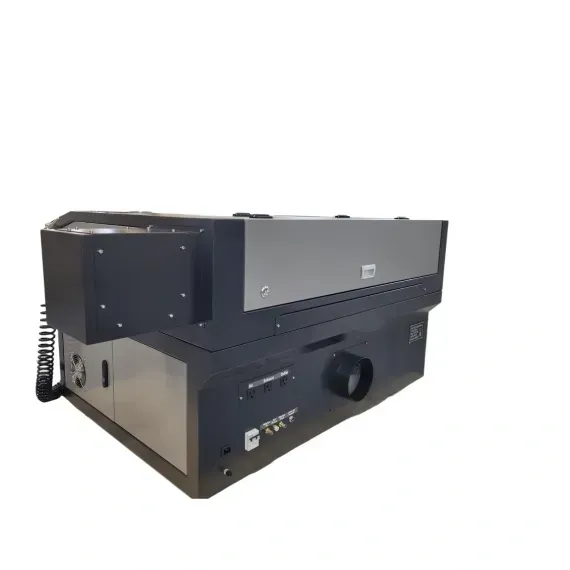

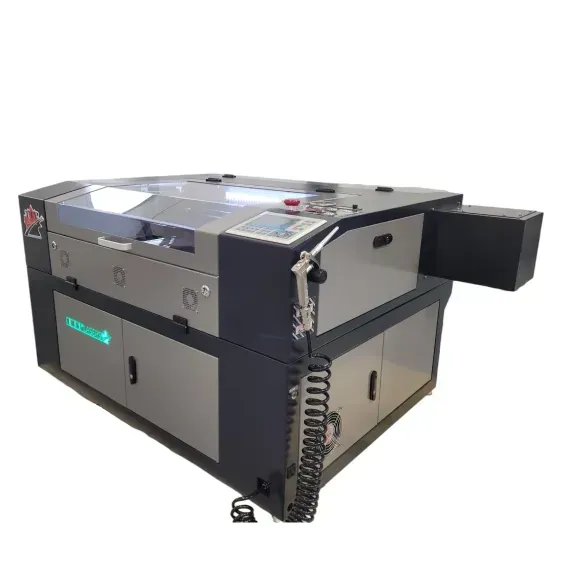

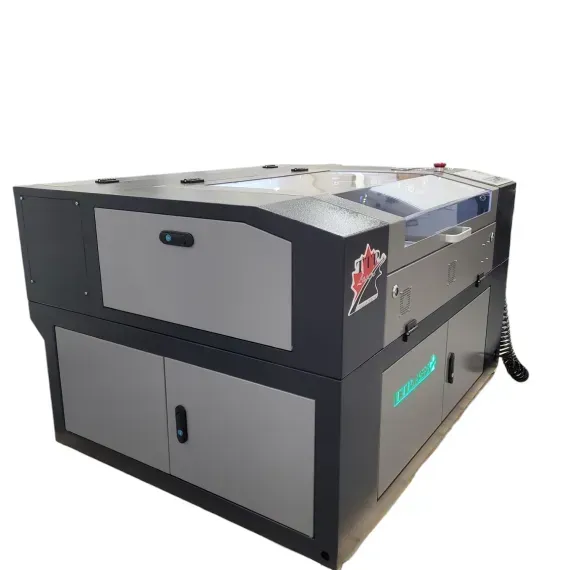

LiteRay
$10,250.00
Plus Applicable Taxes
Sold as a complete package to get you going immediately, you will only require a computer!
You’ve asked and we’ve listened. After hearing your requests for a lower cost laser machine we went into action and brain stormed how we could maintain our high standard for quality, reliability, and ease of operation while maintaining a price point for the budget conscious customer. We are proud to say we have arrived at the perfect combination of quality and affordability. Meet the TTP LiteRay!
Features
- 27.5W x 19.5D x 6H (“) Worktable PLUS Infinite Front/Rear Pass-Thru
- 100W Glass Sealed – RECI – TTP’s Laser Tube
- Ruida RDC6442 Controller – Accepts Windows XP < Windows 10
- Stepper Motors
- Front And Rear Pass Thru Accepts Infinite Length Materials
- Auto Focus Automatically Positions Start Up Distance Between Laser Head And Material
- Red Dot Pointer Illuminates Over Your Material For Improved Accuracy And Material Alignment

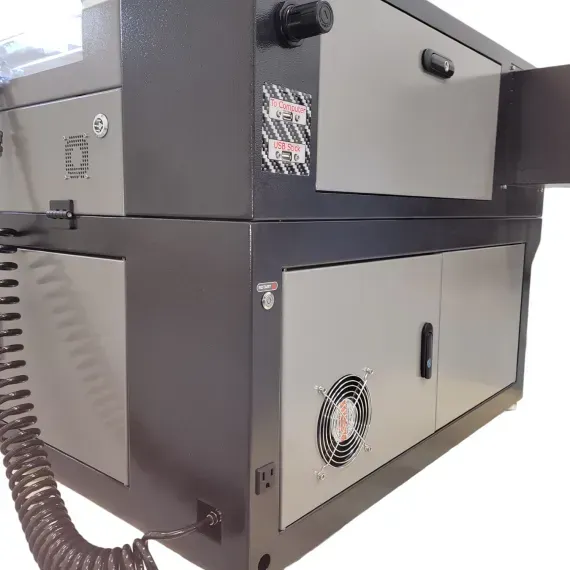

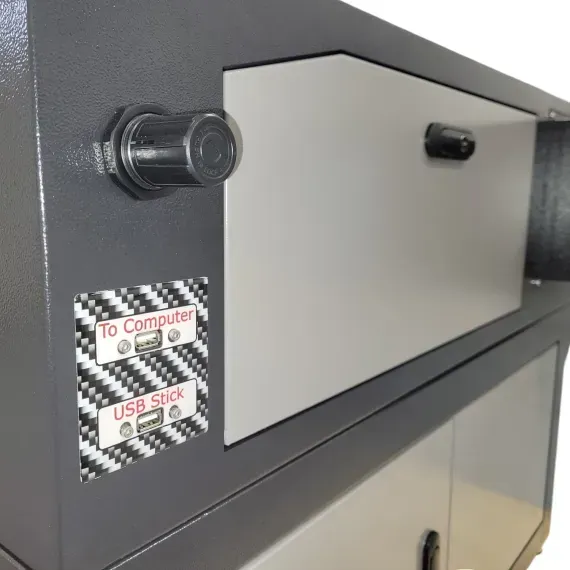

- Ethernet, USB or External Memory Stick Connectivity

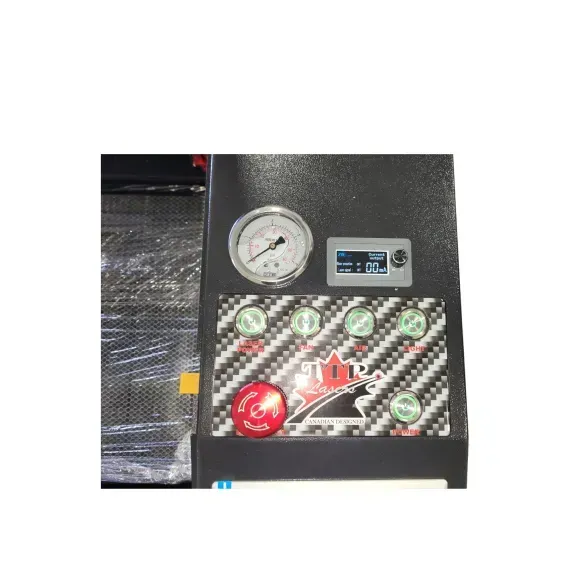

- Illuminated LCD Panel For Automated Laser Head Control
- Motorized Z-Table Provides Up/Down Movement To Accommodate Larger Items
- Both Honey Comb and Knife Blade Work Platforms Included
- LED Strip lighting to Illuminate Workspace
- Genuine CNC Machined Parts For Long Term Service And Reliability
- Precise Hiwin Guide Rails Promote Quiet, Smooth & Precise Laser Movements
- Wired For Optional Rotary, Wheel or Chuck, For Cylindrical Objects – Sold Separately
- Genuine S&A 5000 Chiller With Integrated Water Flow Sensor – Included
- A/C Infinity S6 Exhaust Fan With Adjustable Speed Control – Included

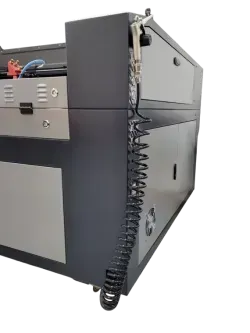

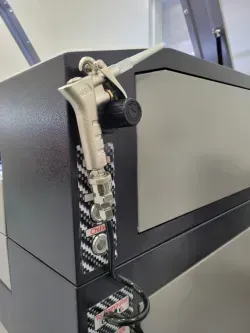

- Air Pump – Included
- Best In Class Technical Support and Setup Guidance
- *2 Year Warranty On Non Consumable Parts (See Warranty Sheet)
- “Our Door To Yours” Shipping included to all Urban Areas.
Canadian customers add GST or HST according to your provincial regulations.
Manitoba customers add GST and PST
All other countries are duty free and tax exempt.
The listed price is the final price you will pay.
Shipping is free to urban areas world wide.
Rural areas may incur additional shipping cost.
| Specifications | LiteRay 28 |
|---|---|
| Laser Tube | Reci W2, Reci rated 100watt, wattage will vary slightly |
| Work Table Size | 27.5"W x 19.5"D x 6"H, D can be infinity with pass through |
| Z Axis Height | 6" |
| Machine Stand Alone Size | 57"W x 36"D x 27.5"H. Add 10W with Tube extention |
| Weight | 265lbs |
| Crate Size | 63"L x 39"W x 36"H May vary |
| Crate Weight | 500Ibs May vary |
| Exhaust | AC Infinity S6 with speed control |
| Air Assist | 105W Air Pump |
| Rail System | High Precision Hiwin Guide Rails |
| Work Table | Honeycomb and Blades |
| Lens | High Quality USA CVD 63.5mm |
| Display And Control Panel | Latest Ruida 6445G |
| Rotary | Rotary Driver Installed (Rotary Optional) |
| Lighting | 1 24v led work area light, 1 in compartment |
| Computer Interface | USB, Wifi, Ethernet, USB Stick |
| Motion Control Motors | Leedshine Stepper X, Y, Z |
| Resolution | 2000DPI Capable, will depend on lens size |
| Compatible Operating Systems | Windows XP/2000/Vista/7/8/10/11. Mac compatible with Lightburn |
| Supported Graphic | Al, PDF, SVG, DXF, PLT, PNG, JPG, GIF, and BMP) |
| Laser Tube | Glass CO2 Reci W2 |
| Supported Software | Lightburn, RDWorks |
| Controller Buffer Memory | 128 MB |
| Operating Modes | Cutting, Scrolling, Engraving, Combined |
| Cooling | S&A CW 5000 Water Chiller |
| Electrical Requirements | 110v,60 Hz, single phase |
| Ventilation Requirements | 6" Duct and Vent |
